Regulatory Compliance: Navigating Fire Safety Codes and Test Standards in India

A look at the fire safety regulations and how to comply with them.

Passive fire protection (PFP) plays a significant role in protecting lives and property in the context of construction and building safety. Compliance with fire safety codes and test standards is not just a legal but also a moral obligation. The paper discusses the essential fire safety regulations and test standards in India and puts emphasis on the regulatory compliance of passive fire stopping.

Understanding Passive Fire Stopping

Passive fire stopping involves the use of fire-resistant materials and construction techniques to prevent the spread of fire and smoke within a building. Unlike active fire protection systems, such as sprinklers and alarms, passive fire stopping works silently in the background, providing critical containment during a fire incident.

Key Fire Safety Codes and Test Standards in India

India has a comprehensive set of fire safety regulations and test standards designed to protect buildings and their occupants. Some of the most important codes and standards relevant to passive fire stopping are as follows:

1. National Building Code (NBC) of India 2016

NBC also dictates requirements in the design, construction, and maintenance of buildings. Part 4 of the NBC specifies details in fire and life safety aspects that include requirements for fire-resistant construction, fire detection, and suppression systems.

2. NFPA 101:Life Safety Code

NFPA 101 contains detailed fire safety requirements, including passive fire protection measures by compartmentation, fire barriers, and smoke barriers. These measures are crucial for limiting the spread of fire and smoke, for the safe evacuation of building occupants-

tion, fire barriers, and smoke barriers. These measures are crucial for limiting the spread of fire and smoke, for the safe evacuation of building occupants.

3. International Building Code (IBC) 2015

The IBC 2015 includes detailed provisions of passive fire protection, emphasizing the importance of fire-resistance-rated construction, fire barriers, and smoke barriers. The fire-resistance ratings of various assemblies are outlined in Section 721 of the IBC, guaranteeing that they comply with safety requirements.

4. Bureau of Indian Standards (BIS)

BIS has created various standards for fire safety such as IS 1642:1989 for the fire safety of buildings, IS 12458:2019 for fire protection of through penetrations, IS 12456:1988 for the fire protection of cable runs, etc. All these standards contain detailed specifications regarding materials and constructional details to make the constructions more fire resistant.

5. Fire Safety Test Standards

• ASTM E814:

  Standard Test Method for Fire Tests of Penetration Firestop Systems. This standard evaluates the fire-resistance of through-penetration firestop systems.

• ASTM E1966:

  : Standard Test Method for Fire-Resistive Joint Systems. This standard assesses the fire-resistance of joint systems in buildings.

• ASTM E2307:

  Standard Test Method for Determining Fire Resistance of Perimeter Fire Barrier Systems Using Intermediate-Scale, Multi-story Test Apparatus. This standard is used to test the fire-resistance of curtain wall joints.

• ASTM E119:

  Standard Test Methods for Fire Tests of Building Construction and Materials. This standard evaluates the fire-resistance of building elements such as walls, floors, and roofs.

• UL 263:

  Standard for Safety of Fire Tests of Building Construction and Materials. This standard is used to determine the fire-resistance rating of building assemblies.

• IS 12458:2019:

  Fire Resistance of Through Penetration Firestops — Method of Test. This standard specifies the method for testing the fire resistance of through-penetration firestops used in openings in fire-resistive walls or floor-ceiling assemblies.

• IS 3809:1979:

  : Fire Resistance Test of Structures. This Indian standard specifies the methods for determining the fire resistance of structural elements.

Importance of Regulatory Compliance

Fire safety codes and test standards must be complied with for several reasons:

1. Life Safety

• The primary goal of fire safety regulations is to protect human lives. Proper passive fire stopping techniques can prevent the spread of fire and smoke, enabling occupants to evacuate safely and in time.

2. Legal Obligations

• Non-compliance with fire safety codes can lead to legal actions, such as fines and imprisonment. Compliance avoids any legal action and ensures concern for safety.

3. Property Protection

• This reduces property damage during a fire by confining the fire to its origin, minimizing the spread of flames and smoke to other parts of the building

4. Insurance Requirements

• Many insurance companies require buildings to comply with fire safety codes as a condition for coverage. Non-compliance can lead to higher premiums or denial of claims in the event of a fire.

5. Reputation and Trust

• Builders, contractors, and architects who are serious about fire safety and regulatory compliance have clients and stakeholders trusting them. A good reputation in terms of safety will therefore give more business opportunities and success in the long term.

Hilti Group’s Commitment to Compliance

Hilti Group under its purpose of Making Construction Better stands as a global leader in providing innovative solutions for passive fire protection. Within the Indian market, Hilti ensures that its passive firestop products will always be in line with the fire safety codes and standards. Here's how Hilti is committed to regulatory compliance:

1. Complies with National and International Standards

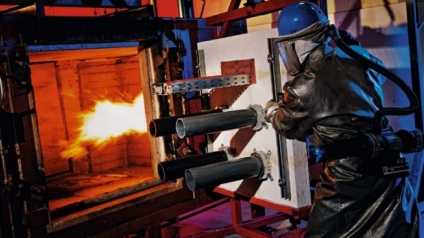

• Hilti firestop products are designed and tested to meet the rigorous standards set by the National Building Code (NBC) of India 2016 and Bureau of Indian Standards (BIS). Additionally, Hilti products meet international standards in ASTM and are backed by UL and Intertek certifications.

2.Comprehensive Training and Support

• Hilti offers comprehensive training for installers, specifiers, and contractors on proper application and compliance with fire safety codes. The training includes the basic principles of firestop systems, product selection, and installation procedures.

3.Innovative and Tested Solutions

• With over 30 years of experience, Hilti offers a wide range of firestop products, including firestop devices, sleeves, blocks, collars, wraps, and sealants. Each product is rigorously tested to ensure it meets or exceeds the required safety standards.

4. Technical Assistance and Documentation

• Hilti offers comprehensive technical documentation and engineering judgments to ensure that firestop systems are properly applied. These include selection of appropria te systems for given applications as well as ensuring that all national and international codes are met.

5.Commitment to Continuous Improvement

• Hilti constantly invests in research and development to further improve the performance and compliance of its firestop products. Such a commitment keeps Hilti ahead of passive fire protection technology.

Navigating the complex landscape of fire safety codes and test standards in India is a critical task for builders, contractors, specifiers, and architects. It can help the construction industry ensure safety for occupants, protect property, and fulfill legal obligations if the industry understands and adheres to the regulations. Passive fire stopping is an essential part of fire safety, and proper implementation of this can make a significant difference in case of fire.

Stay informed, stay compliant, and prioritize safety in every project.

    Vishakha Mittal
Technical Content Manager
Hilti Group
