Fire protection is a critical component in building safety, ensuring that fire, smoke, and heat do not spread uncontrollably. One of the most effective Passive Fire Protection (PFP) solutions is the insulated fire sleeve. These sleeves are designed to protect pipes, cables, and ducts that pass through fire-rated walls, ceilings, and floors, maintaining compartmentalization and preventing the spread of fire.
This article explores the role of insulated fire sleeves, their materials, benefits, applications, and compliance with fire safety standards.
Understanding Insulated Fire Sleeves

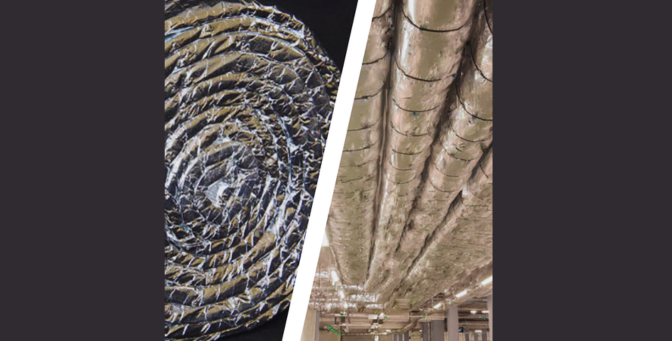

Insulated fire sleeves are protective coverings made from fire-resistant and insulating materials. Their primary function is to seal penetrations where pipes, cables, or ducts pass through fire-rated barriers. They are particularly useful in ensuring that the fire resistance of walls and floors is not compromised by service penetrations.
Key Components of Insulated Fire Sleeves:
- Intumescent Layer – Expands when exposed to heat, sealing gaps around penetrations.
- Thermal Insulation – Provides protection against heat transfer.
- Flexible or Rigid Design – Available in flexible wraps or rigid casings, depending on the application.
- Weatherproof and Corrosion-Resistant Outer Layer – Ensures longevity in harsh conditions.
How Insulated Fire Sleeves Work
Insulated fire sleeves activate when exposed to high temperatures, typically above 200°C (392°F). When fire occurs, the intumescent material expands, filling gaps and preventing fire and smoke from traveling through the penetration.
The Protection Process:
- Under Normal Conditions: The sleeve remains passive, allowing regular function of pipes or cables.
- Fire Exposure: The intumescent material expands, closing any gaps around the penetrations.
- Full Sealing: The sleeve creates a fire-resistant and smoke-tight barrier, maintaining the integrity of fire-rated walls and floors.
Benefits of Insulated Fire Sleeves
Insulated fire sleeves offer several advantages, making them an essential component in fire safety systems:
1. Prevents Fire and Smoke Spread
By sealing penetrations, fire sleeves maintain compartmentalization, slowing the spread of flames and smoke. This increases evacuation time and reduces fire damage.
2. Enhances Structural Integrity
Fire sleeves protect critical building components, ensuring that fire does not compromise the load-bearing capacity of walls and ceilings.
3. Compliance with Fire Safety Standards
Most fire safety regulations, including BS 476-20, EN 1366-3, and NFPA 251, require proper sealing of service penetrations. Fire sleeves ensure compliance with these codes.
4. Thermal Insulation
By reducing heat transfer, fire sleeves prevent hot gas expansion, lowering the risk of fire spread through conductive elements like metal pipes.
5. Easy Installation and Low Maintenance
Unlike fire dampers or active suppression systems, insulated fire sleeves do not require electricity or moving parts, making them easy to install and maintain.
Types of Insulated Fire Sleeves
Different fire safety needs require different types of fire sleeves. The most common varieties include:
- Intumescent Pipe Sleeves: Designed for plastic pipes, these sleeves expand when exposed to fire, sealing off the opening as the plastic pipe melts.
- Flexible Cable Fire Sleeves: Wraps around electrical and data cables, preventing fire from traveling along cable routes.
- Duct Fire Sleeves: Used for ventilation and exhaust ducts, ensuring fire does not spread through HVAC systems.
- Metal Pipe Fire Sleeves: Provides insulation and fire resistance for conductive materials like copper and steel pipes.
- Multi-Purpose Fire Sleeves: Suitable for mixed penetrations, including pipes and cables in a single opening.
Installation Best Practices
To ensure maximum effectiveness, proper installation of insulated fire sleeves is essential. Here are some key guidelines:
- Choose the Right Sleeve – Ensure the sleeve meets the required fire rating (30, 60, 90, or 120 minutes).
- Seal Gaps Properly – Use fire-resistant sealants or intumescent wraps if needed.
- Avoid Compromising Insulation – Do not cut or modify the sleeve beyond manufacturer recommendations.
- Regular Inspections – Fire sleeves should be checked annually for damage or wear.
Case Studies: Insulated Fire Sleeves in Action
Case Study 1: A Commercial Office Tower
A high-rise building in Delhi faced challenges in fireproofing electrical cable penetrations. After installing flexible insulated fire sleeves, the building saw improved fire resistance and compliance with local fire codes.
Case Study 2: A Healthcare Facility
A hospital in Bangalore needed a solution to fireproof plastic medical gas pipes. Intumescent pipe sleeves were installed, ensuring fire-rated protection for 90 minutes and reducing fire risks in critical patient areas.
Challenges and Limitations
While insulated fire sleeves are highly effective, they do have some limitations:
- Incorrect Installation: Improper placement may reduce fire resistance.
- Material Compatibility Issues: Some sleeves may not be compatible with certain pipe or cable materials.
- Cost Considerations: While cost-effective in the long run, initial installation costs can be higher than basic fire caulking.
Future Trends in Insulated Fire Sleeves
With advancements in fire safety technology, the next generation of insulated fire sleeves will offer:
- Smart Fire Sleeves: Integrated with sensors to detect temperature changes.
- Eco-Friendly Intumescent Materials: Non-toxic, sustainable fire-sealing compounds.
- Self-Healing Fire Sleeves: Designed to retain effectiveness even after minor damage.
Conclusion
Insulated fire sleeves play a vital role in passive fire protection, ensuring that service penetrations do not compromise a building’s fire safety. By preventing fire and smoke spread, maintaining structural integrity, and complying with regulations, they are a crucial investment for any fire-resistant building. As fire safety standards continue to evolve, fire sleeves will remain an essential component in protecting lives and property.
